參數(Item):                                               型號(Model):

CNC6150*1000

加工能力

CAPACITIES

床身上最大回轉直徑Max.swing over bedmm4

500

刀架上最大回轉直徑Max.swing over arriagemm

290

最大車削長度Max truning length

床身寬度Bed width

360

行程
TRAVEL

X軸行程Xaxis travelmm

Z軸行程Yaxis travelmm

1000

主軸
SPINDLE

主軸轉速范圍Spindle speed  rpm

70~1600無極變速

主軸端部尺寸Spinele nosemm

C8

主軸內控錐度Spindle taper

MT6

主軸通孔直徑Spindle hole

82

刀架
TURRET

刀具數量Number of stations

4

刀柄尺寸Tool shank sizemm

25×25

換刀時間Indexing timesec

2.0(S)

進給
FEEDS

X軸快速進給Rapid traverse of X axismm/min

5000

Z軸快速進給Rapid traverse of Z axismm/min

5000

每轉切削進給量Cutting feed X and Z axismm/r

0.005-100

尾座
AJAILSTOCK

尾座套筒錐度Taper of tailstock sleeve

MT5

尾座套筒直徑Dia.of tailstock sleeve

75

尾座套筒行程Travel of tailstock sleeve

150

電機
MOTOR

主電機功率Main motor power                kw

7.5

X軸、Z軸電機X and Z axis motor          Nm

5/7.5

長×寬×高L×W×H                                     mm

2500×1500×1700

凈重Net weight                                       kg

2800

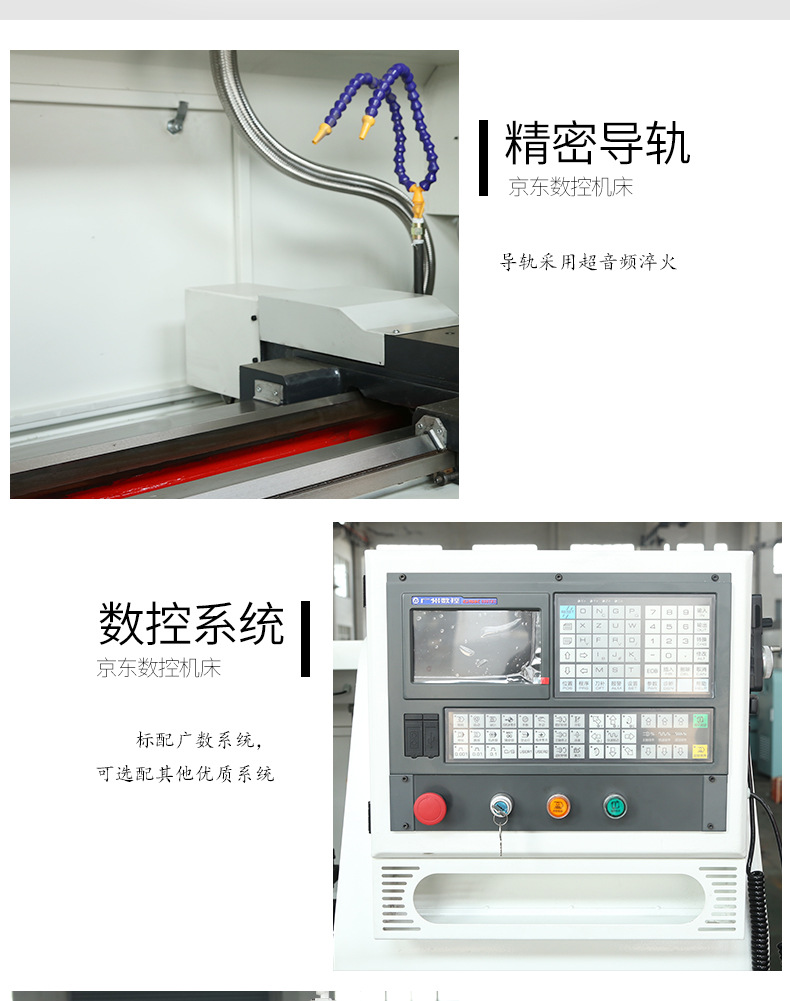

數控系統Type of CNC Controller
