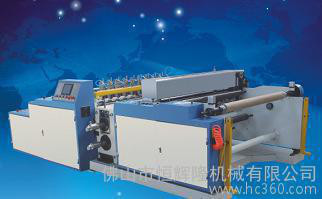

HHL-DK1300S-B 全伺服無紡布打孔壓花機

一 概述

    HHL-DK1300S-B型無紡布打孔壓花機，設備主要適用于紙尿褲、尿片面層加工及無紡布分切。該機的放料架與收料架均采用獨立伺服電機控制。并配有光電自動跟蹤糾偏系統，,自動張力控制系統，采用高精度臺灣進口模具加工而成，精密絲桿控制位置.該機具有打孔及分切速度快，能耗低，空氣污染小等特點。

   本機由布放卷單元、打孔單元、在線分切單元、收卷單元、電氣控制系統及相應氣動控制儀表等組成**次的硬件、完善的軟件配置，滿足國情的性能和合理價位。采用先進的“集中式數控系統”，具有自動化程度高、功能齊全、性能穩定可靠、操作簡便及生產效率高等優點。

    本機型顯著特點

⊙**高機械速度： 90m/min

⊙采用進口機的標準配置， 二級浮輥式全伺服電機聯動張力控制系統.放卷采用超低摩擦氣缸擺動輥檢測，具有高精度，靈敏度的張力控制。收卷采用高精度張力檢測器，具有高精度高靈敏度的張力控制。

 ⊙異地加減速及速度自動控制、張力與速度實行聯動控制，加減速穩定。

⊙可選擇式加減速曲線、加減速是否響鈴、計米達到設定值是否自動減速停機等個性化功能。充分體現科技以人為本的人性化設計理念

⊙采用日本三菱Fx3U系列PLC集中控制、采色人機界面漢顯操作系統。機、電、光、氣一體化設計，具有完善的安全保護功能。

二、主 要 性 能

  主 要 技 術 參 數

⊙基材寬幅：   1200mm

⊙整機機械總功率  ： ~21kw

⊙分切卷取邊緣整齊：  +1mm

⊙熱風無紡布及仿粘布打孔速度： 6-80m/min（打孔速度取決于所用基材的特性、厚度均勻性特性及其它）

⊙機械速度 ：  90/min

⊙加熱方式 ： 油加熱

⊙定型方式 ：    冷卻水5度到常溫

⊙溫度控制 ：   50-200 度/+-1 度

⊙驗收速度 ：   70m/min

⊙收放卷**大直徑 ：  Φ1000mm

⊙紙筒**大長度 ：   1200mm

⊙紙筒規格 ：        內徑Φ76mm×外徑Φ92mm

⊙收放卷氣脹軸外徑 ：Φ74mm   各配兩條

⊙導輥長度：        1300mm

⊙打孔有效寬度 ：    1200mm

⊙張力控制范圍：   3~25kg/全幅寬

⊙張力控制精度 ：   ±0.5kg/全幅精度

HHL-DK1300S-B Full Auto -service Non-woven Pin-hole Embossing Machine

一Summary

    HHL-DK1300S-B Type Non-woven Pin-hole Embossing Machine, main working in the top sheet of diaper, diaper pad and Non-woven cutting. The winding rack and rewinding race are controlled by Auto-service electric machinery, and photoelectric。Auto tracing correct system, auto pulling control system.. The process used Taiwanese’s high accuracy mold, high precision pole control position. The machine have such features: fast speed in pin-hole and cutting, low energy,and low air pollution.

The machine is compose of winding unit, pin-hole unit, line-cutting unit,re-winding unit, electric control system and pneumatic instrument. High level hardware, perfect software configuration,satisfy capability and reasonable price. The machine have such advantages : high level of auto-service, multi-functional ,stable property, easy -to -used and high production eficiency, which use advanced “ concentration CNC system”.

   Main Characteristic

⊙ Higt speed：90m/min

⊙ Advantage standard configuration: Two grade float roller with full auto-service electric machinery combine with pulling control system. The winding rack detected by extra-lowest friction cylinder roller, which have high measuring precision and high sensitive pulling control. The rewinding using high measuring precision pulling detect machinery, have high measuring precision and high sensitive pulling control.

⊙ Variance accel-decel and auto control speed, pulling combine with speed control, accel-decel stable.

⊙ Alternative accel-decel curve, acel-decel with alarm, the machine whether would reduce speed and stop machine when the measurement reach set point value,which several kind of individuation function showing our individuation design idea--“ Human Technology “

⊙ Adopt PLC intent control from Mitsubishi FX3U,colorful HMI operating system. Electromechanical integration design, have full safety protect function.

二      二 Main  performance

  1. Main technical data-sheet

⊙material width：                  1200mm

⊙Total output)：         ~21kw

⊙cutting edge error)：  +1mm

⊙pin-hole speed ：                6-80m/min（based on the feature of materials）

⊙machine speed ：                            90/min

⊙heating mode：           oil

⊙finalizing mode：    5 to ordinary

⊙Temperature ：   50-200 度/+-1 度

⊙Acceptance speed ：   70m/min

⊙max OD：  Φ1000mm

⊙max length of inner roll：   1200mm

⊙Specs inner roll：        內徑Φ76mm×外徑Φ92mm

⊙OD winding and re-winding)：Φ74mm    Two pieces

⊙length of roller ：        1300mm

⊙valid width ：    1200mm

⊙range of pulling control：   3~25kg/全幅寬 (full width )

⊙pulling control precision：   ±0.5kg/全幅精度(full width)
